Introduction:
The Confluence houses selected oil paintings on panel and canvas,
over half of which have alternate origins. The architectural
interventions are adaptive reinterpretations on an existing warehouse.

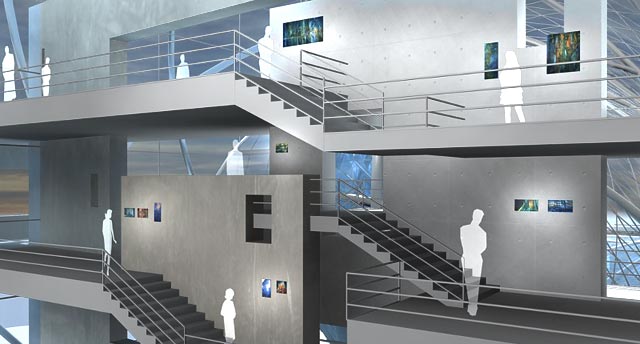

The studios and offices are housed behind the inserted gallery modules
which also serve as vertical circulation. The top of the main display
module is shown above. The rest of the planes display photographs of the
stages of progress printed at real scale and mounted in the same fashion
as the finished pieces. The three-dimensionally spiraled cladding is a
surface based on a recursive circular surface. It is meant to foil and
frame experiences inside of the complex. |

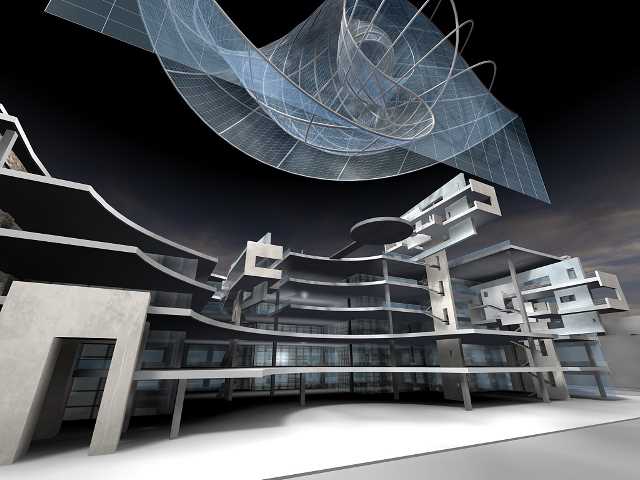

Above: Diagramatic Perspective showing inserted gallery modules with exterior skin floating above. |
